تفاصيل المنتج:
|
| رقم الجزء: | IQEH68NE2LM7UCG | القطبية الترانزستور: | قناة ن |
|---|---|---|---|
| Vds - جهد انهيار مصدر التصريف: | 25 فولت | المعرف - تيار التصريف المستمر: | 338 أ |
| Rds On - مقاومة مصدر التصريف: | 680 أوم | Qg - رسوم البوابة: | 22 ن |

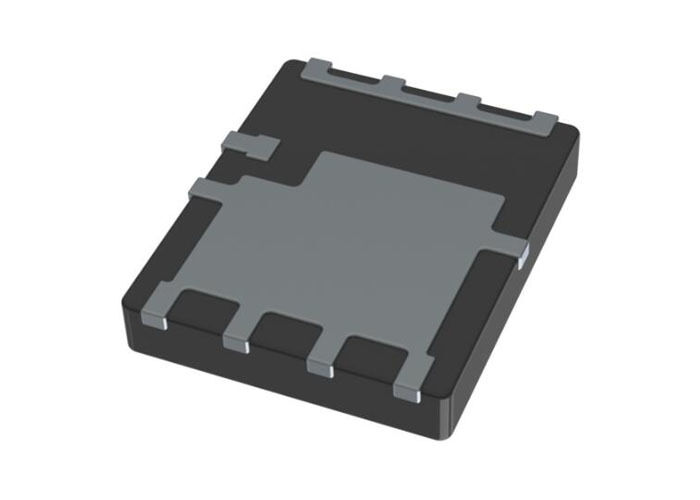

IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor
Product Description Of IQEH68NE2LM7UCG
IQEH68NE2LM7UCG is 25V, OptiMOS™ 7 switching optimized power MOSFETs for hard- and soft-switching topologies in PQFN 3.3x3.3 Source-Down package.
Specification Of IQEH68NE2LM7UCG
|
Series
|
OptiMOS™ 7
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
25 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
47A (Ta), 338A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
0.68mOhm @ 20A, 10V
|
|
Vgs(th) (Max) @ Id
|
2V @ 369µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
48 nC @ 10 V
|
|
Vgs (Max)
|
±16V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
5200 pF @ 12 V
|
|
Power Dissipation (Max)
|
2.5W (Ta), 130W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-TTFN-9-3
|
|
Package / Case
|
9-PowerTDFN
|
Features Of IQEH68NE2LM7UCG
N‑channel, logic level
Very low on‑resistance RDS(on)
Hard- and soft-switching optimizations
Hard-switch.: Miller ratio, FOM, RDS(on)10
Soft-switch.: RDS(on)45, FOMQg
+175°C junction temperature rating
Optimized for hard switching topologies
Optimized for best FOMoss
Excellent Miller ratio for dv/dt ruggedness
Superior thermal resistance
100% avalanche tested
Applications Of IQEH68NE2LM7UCG
Data center and AI data center solutions
48 V intermediate bus converter (IBC)
Telecommunications infrastructure
Power conversion
Server power supply units (PSU)
