تفاصيل المنتج:
|
| رقم الجزء: | IQEH84NE2LM7UCG | مسلسل: | أوبتيموس™ 7 |
|---|---|---|---|
| استنزاف لمصدر الجهد (Vdss): | 25 فولت | التيار - التصريف المستمر (المعرف) عند 25 درجة مئوية: | 42A (تا)، 275A (ح) |
| بوابة المسؤول (Qg) (الحد الأقصى) @ Vgs: | 37 نانو سي @ 10 فولت | درجة حرارة التشغيل: | -55 درجة مئوية ~ 175 درجة مئوية (TJ) |

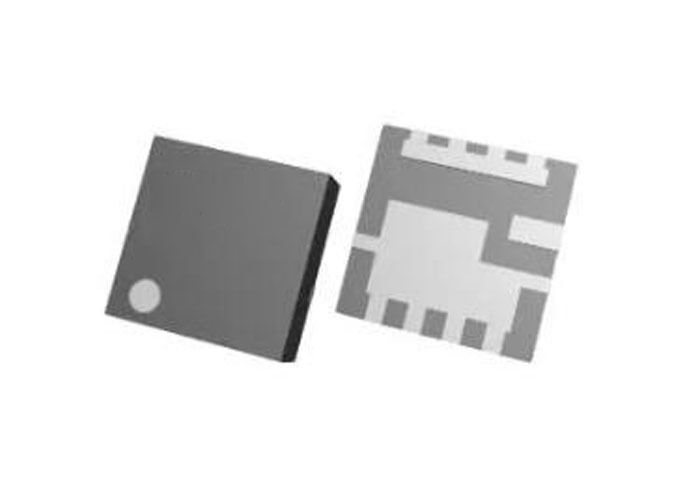

IQEH84NE2LM7UCG Integrated Circuit Chip OptiMOS™ 7 Power Transistor 25V N-Channel MOSFETs
Product Description Of IQEH84NE2LM7UCG
IQEH84NE2LM7UCG is an OptiMOS™ 7 series 25V N-channel power MOSFET. It offers a new level of application-optimization, enabling peak performance for data centers, servers, AI more. The portfolio is available in two technology flavors, including products optimized for hard-switching as well as for soft-switching topologies.
Specification Of IQEH84NE2LM7UCG
| N-Channel | |
| 1 Channel | |
| 25 V | |
| 275 A | |
| 840 uOhms | |
| 16 V | |
| 2 V | |
| 17.2 nC | |
| - 55℃ | |
| + 175℃ | |
| 107 W | |
| Enhancement | |
| Configuration: | Single |
| Fall Time: | 2.4 ns |
| Forward Transconductance - Min: | 50 S |
| Rise Time: | 3 ns |
Features Of IQEH84NE2LM7UCG
Hard- and soft-switching optimizations
Hard-switch.: Miller ratio, FOM, RDS(on)10
Soft-switch.: RDS(on)45, FOMQg
+175°C junction temperature rating
Source-down package variants
Center-gate footprint, DSC overmolded
Application-specific optimization
Improved performance efficiency
Advanced induced turn-on ruggedness
Reduced driver and switching losses
Reduced conduction losses
Increased reliability and power density
Superior thermal capabilities
Reduced package parasitics
Simplified paralleling of MOSFETs
Applications Of IQEH84NE2LM7UCG
Power conversion
Server power supply units (PSU)
Data center and AI data center solutions
48 V intermediate bus converter (IBC)
Telecommunications infrastructure
