تفاصيل المنتج:
|
| رقم الجزء: | ADR391BUJZ | الجهد - الخروج (دقيقة / ثابتة): | 2.5 فولت |
|---|---|---|---|
| التيار - الناتج: | 5 مللي أمبير | التسامح: | ±0.16% |
| معامل درجة الحرارة: | 9 جزء في المليون/درجة مئوية | الضوضاء - 0.1 هرتز إلى 10 هرتز: | 5µVp-p |

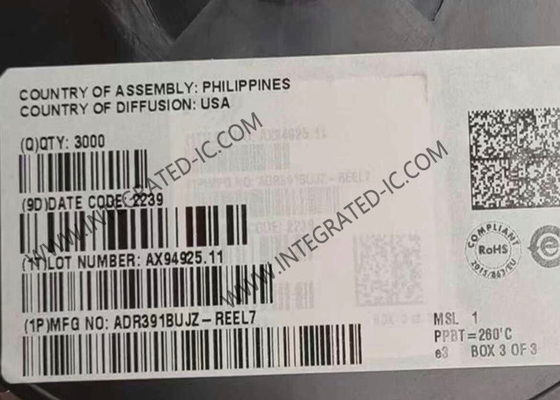

ADR391BUJZ Integrated Circuit Chip 2.5V Micropower Low Noise Precision Voltage Reference With Shutdown
Product Description Of ADR391BUJZ
ADR391BUJZ is precision 2.5 V, 4.096 V, and 5 V band gap voltage references, respectively, featuring low power and high precision in a tiny footprint. Using patented temperature drift curvature correction techniques, the ADR391BUJZ references achieve a low 9 ppm/°C of temperature drift in the TSOT package.
Product Attributes Of ADR391BUJZ
|
Reference Type |
Series |
|
Output Type |
Fixed |
|
Voltage - Output (Min/Fixed) |
2.5V |
|
Current - Output |
5 mA |
|
Tolerance |
±0.16% |
|
Temperature Coefficient |
9ppm/°C |
|
Noise - 0.1Hz to 10Hz |
5µVp-p |
|
Voltage - Input |
2.8V ~ 15V |
|
Current - Supply |
140µA |
|
Operating Temperature |
-40°C ~ 125°C (TA) |
|
Mounting Type |
Surface Mount |
Features Of ADR391BUJZ
Compact 5-lead TSOT package
Low temperature coefficient
B grade: 9 ppm/°C
A grade: 25 ppm/°C
Initial accuracy
B grade: ±4 mV maximum (ADR391)
A grade: ±6 mV maximum
Ultralow output noise: 5 μV p-p (0.1 Hz to 10 Hz)
Low dropout: 300 mV
Low supply current
3 μA maximum in shutdown
140 μA maximum in operation
No external capacitor required
Output current: 5 mA
Automotive grade available
Wide temperature range: −40°C to +125°C
Applications Of ADR391BUJZ
Battery-powered instrumentation
Portable medical instrumentation
Data acquisition systems
Industrial process controls
Automotive
