تفاصيل المنتج:
|
| رقم الجزء: | ADA4891-4WARUZ | معدل الانحراف: | 170 فولت / µs |
|---|---|---|---|
| احصل على منتج النطاق الترددي: | 105 ميغا هيرتز | -3db النطاق الترددي: | 220 ميغا هيرتز |
| التيار - تحيز المدخلات: | 2 باسكال | الجهد - إزاحة الإدخال: | 2.5 مللي فولت |

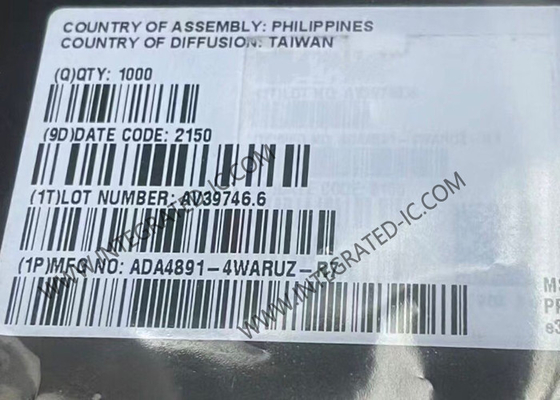

ADA4891-4WARUZ Integrated Circuit Chip Low Cost CMOS High Speed Rail-To-Rail Amplifier
Product Description Of ADA4891-4WARUZ
ADA4891-4WARUZ is CMOS, high speed amplifiers that offer high performance at a low cost. The amplifiers feature true single-supply capability, with an input voltage range that extends 300 mV below the negative rail.
Product Attributes Of ADA4891-4WARUZ
|
Amplifier Type |
CMOS |
|
Number of Circuits |
4 |
|
Output Type |
Rail-to-Rail |
|
Slew Rate |
170V/µs |
|
Gain Bandwidth Product |
105 MHz |
|
-3db Bandwidth |
220 MHz |
|
Current - Input Bias |
2 pA |
|
Voltage - Input Offset |
2.5 mV |
|
Current - Supply |
4.4mA (x4 Channels) |
|
Current - Output / Channel |
125 mA |
|
Voltage - Supply Span (Min) |
2.7 V |
|
Voltage - Supply Span (Max) |
5.5 V |
|
Operating Temperature |
-40°C ~ 125°C |
Features Of ADA4891-4WARUZ
High speed and fast settling
−3 dB bandwidth: 220 MHz (G = +1)
Slew rate: 170 V/μs
Settling time to 0.1%: 28 ns
Video specifications (G = +2, RL = 150 Ω)
0.1 dB gain flatness: 25 MHz
Differential gain error: 0.05%
Differential phase error: 0.25°
Single-supply operation
Wide supply range: 2.7 V to 5.5 V
Output swings to within 50 mV of supply rails
Low distortion: 79 dBc SFDR at 1 MHz
Linear output current: 125 mA at −40 dBc
Low power:
4.4 mA per amplifier
Applications Of ADA4891-4WARUZ
Imaging
Consumer video
Active filters
Coaxial cable drivers
Clock buffers
Photodiode preamp
Contact image sensor and buffers
