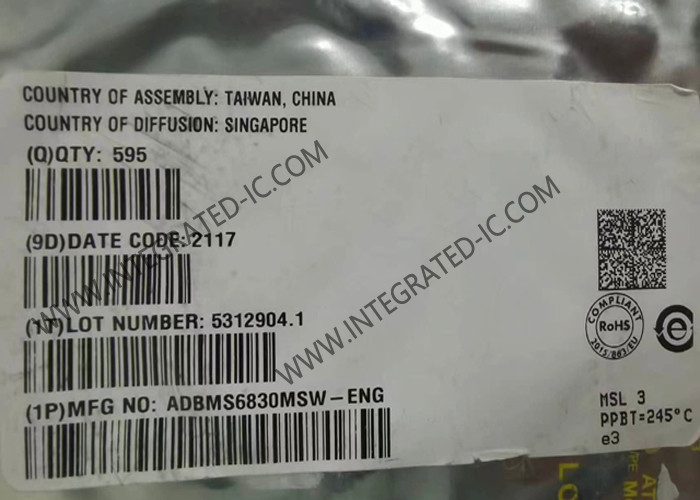

ADBMS6830MSW Integrated Circuit Chip 16-Channel Multicell Battery Monitor QFP80 Package

ADBMS6830MSW Integrated Circuit Chip 16-Channel Multicell Battery Monitor QFP80 Package

Product Description Of ADBMS6830MSW
ADBMS6830MSW is a multicell battery stack monitor that measures up to 16 series-connected battery cells.
All cells can be measured simultaneously with two individual analog-to-digital converters (ADCs). Each channel includes a pro- grammable digital low-pass flter. A second set of similar ADCs provides closely correlated measurements to ensure redundant measurement capability required to meet safety standards.
ADBMS6830MSW allows bus bars to be bypassed and direct meas- urement of negative bus bar voltages.

Features Of ADBMS6830MSW
Simultaneous and continuous measurement of 16 cell voltages
Passive cell balancing with programmable pulse-width modulation control per channel
Supports simultaneous cell balancing on adjacent channels
Configurable digital low-pass filters per channel
Bidirectional isoSPI interface
2 Mbps isolated serial communications
Uses a single twisted pair cable
Low EMI susceptibility and emissions
Capacitor or transformer-coupled
Low-power cell monitoring mode
Bus bar bypass and measurement support
Up to 10 pins configurable as general-purpose analog input ordigital I/O
Temperature or other sensor inputs
Configurable as an I2C or SPI controller
Maximum lifetime TME: ±1.8 mV at 3.3 V per cell (−40°C to+125°C)
Sleep-state supply current of 4 μA
72-/80-lead side-solderable package with exposed pad
AEC-Q100 qualified for automotive applications
ISO 26262 life cycle, ASIL D

Applications Of ADBMS6830MSW
Electric and hybrid electric vehicles
Backup battery systems
Grid energy storage
