تفاصيل المنتج:
|
| رقم الجزء: | ADUM2250ARWZ | النوع: | I2C |
|---|---|---|---|
| الجهد - العزلة: | 5000Vrms | معدل البيانات: | 1 ميجابت في الثانية |
| تشويه عرض النبض (الحد الأقصى): | 145ns ، 85 نانوثانية | الجهد - الإمدادات: | 3 فولت ~ 5.5 فولت |

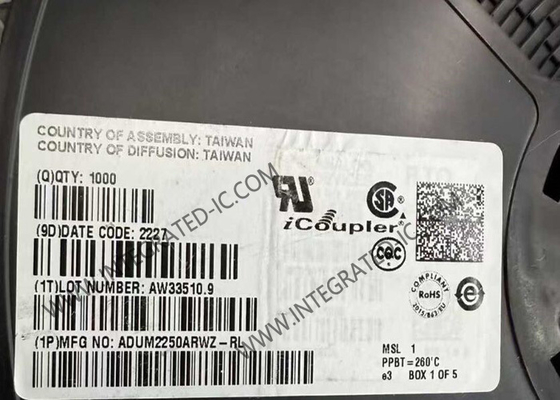

ADUM2250ARWZ Integrated Circuit Chip Hot Swappable Digital Isolators 1Mbps Dual I2C Isolators
Product Overviews Of ADUM2250ARWZ
ADUM2250ARWZ is hot swappable digital isolators with nontlatching, bidirectional communication channels and are compatible with I2C interfaces. ADUM2250ARWZ provides two bidirectional channels, supporting a complete isolated I2C interface.
Specification Of ADUM2250ARWZ
|
Technology
|
Magnetic Coupling
|
|
Type
|
I2C
|
|
Isolated Power
|
No
|
|
Number of Channels
|
2
|
|
Inputs - Side 1/Side 2
|
2/2
|
|
Channel Type
|
Bidirectional
|
|
Voltage - Isolation
|
5000Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Data Rate
|
1Mbps
|
|
Pulse Width Distortion (Max)
|
145ns, 85ns
|
|
Voltage - Supply
|
3V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
Features Of ADUM2250ARWZ
Bidirectional I2C communication
Open-drain interfaces
Suitable for hot swap applications
30 mA current sink capability
1000 KHz operation
3.0 V to 5.5 V supply/logic levels
16-lead SOIC wide body package version (RW-16)
High temperature operation: 105°C
16-lead SOIC wide body enhanced creepage version (RI-16-2
Applications Of ADUM2250ARWZ
Isolated I2C, SMbus, or PMBus Interfaces
Multilevel I2C interfaces
Power supplies
Networking
Power over Ethernet
