تفاصيل المنتج:
|
| رقم الجزء: | NRVB5100MFST1G | الجهد - DC عكسي (VR) (كحد أقصى): | 100 فولت |
|---|---|---|---|
| الحالي - متوسط تصحيح (IO): | 5A | الجهد - إلى الأمام (VF) (الحد الأقصى) @ IF: | 980 mV @ 5 a |
| التيار - تسرب عكسي @ VR: | 10 µA @ 100 V | درجة حرارة التشغيل - تقاطع: | -55 درجة مئوية ~ 175 درجة مئوية |

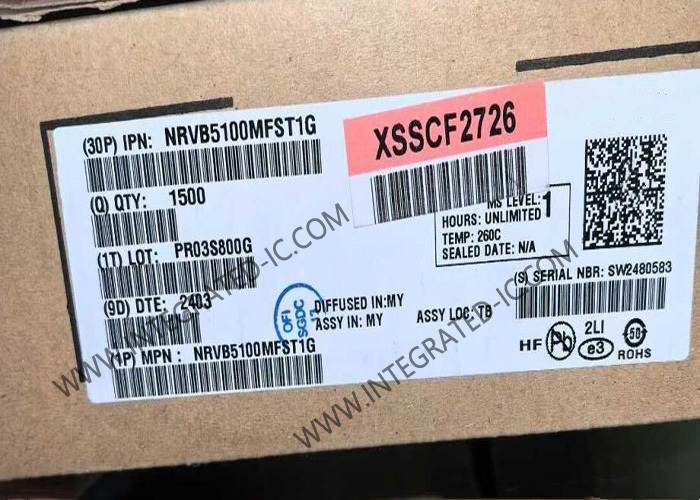

NRVB5100MFST1G Integrated Circuit Chip 5A 100V Schottky Rectifier SO-8FL Single Diodes
Product Overviews Of NRVB5100MFST1G
NRVB5100MFST1G is Single 5A 100 V Low Forward Voltage Schottky Rectifier packaged in the SO-8FL. The SO-8FL package provides a bridge between the DPAK and the SMC packages. The board footprint is approximately the same size as the SMC package, yet provides thermal performance almost as good as the DPAK package. The package also has a nominal 1.0mm height for highly space constrained applications.
Specification Of NRVB5100MFST1G
| Part Number: | NRVB5100MFST1G |
| Schottky Rectifiers | |
| SMD/SMT | |
| SO-8FL-4 | |
| Single | |
| Si | |
| 5 A | |
| 100 V | |
| 760 mV | |
| 75 A | |
| 3 uA | |
| - 55 ℃ | |
| + 175 ℃ | |
| Type: | Switch Mode Rectifiers |
| Vr - Reverse Voltage: | 100 V |
Features Of NRVB5100MFST1G
Low Power Loss / High Efficiency
New Package Provides Capability of Inspection and Probe After Board Mounting
Guardring for Stress Protection
Low Forward Voltage Drop
175°C Operating Junction Temperature
Applications Of NRVB5100MFST1G
Power Conversion Circuit
Reverse Battery Protection
Gate Driving Circuit
Protection and Free-Wheeling
