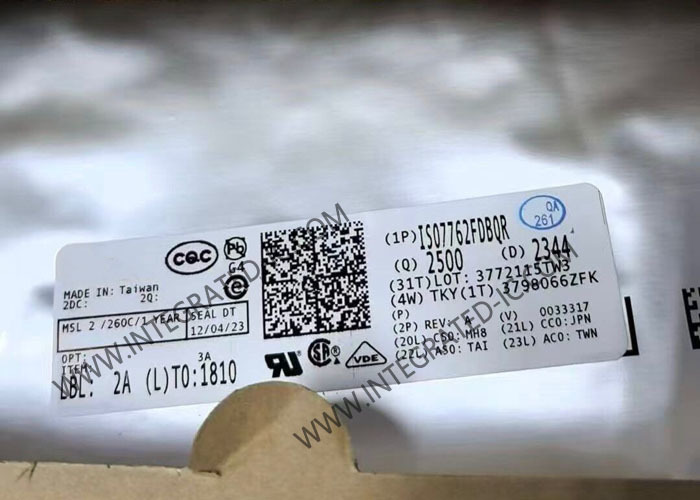

ISO7762FDBQR Integrated Circuit Chip 3000Vrms Six-Channel Digital Isolators SSOP16

ISO7762FDBQR Integrated Circuit Chip 3000Vrms Six-Channel Digital Isolators SSOP16

Product Description Of ISO7762FDBQR

ISO7762FDBQR is high-performance, six-channel digital isolators with 3000-VRMS isolation ratings per UL 1577. ISO7762FDBQR provides high-electromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier.

Specification Of ISO7762FDBQR

Features Of ISO7762FDBQR

100 Mbps data rate
Robust isolation barrier:
- >30-Year projected lifetime
- Up to 5000 VRMS isolation rating
- Up to 12.8 kV surge capability
- ±100 kV/µs Typical CMTI
Wide supply range: 2.25 V to 5.5 V
2.25-V to 5.5-V Level translation
Default output high (ISO776x) and low (ISO776xF) Options
Wide temperature range: –55°C to +125°C
Low power consumption, typical 1.4 mA per channel at 1 Mbps
Low propagation delay: 11 ns typical at 5 V

Applications Of ISO7762FDBQR
Industrial automation
Motor control
Power supplies
Solar inverters
Medical equipment
