تفاصيل المنتج:
|
| رقم الجزء: | TLE7184F | تشغيل توريد التيار: | 19 مللي أمبير |
|---|---|---|---|
| الجهد - العرض: | 6 فولت ~ 45 فولت | إعدادات: | ثلاث مراحل |
| فئة الجهد: | 55 فولت | درجة حرارة التشغيل: | -40 درجة مئوية ~ 150 درجة مئوية (TJ) |
| إبراز: | Integrated 5V Vreg-Controller System IC,6V ~ 45V Supply Voltage Integrated Circuit Chip,-40°C ~ 150°C Operating Temperature MOTIX IC,6V ~ 45V Supply Voltage Integrated Circuit Chip,-40°C ~ 150°C Operating Temperature MOTIX IC |
||

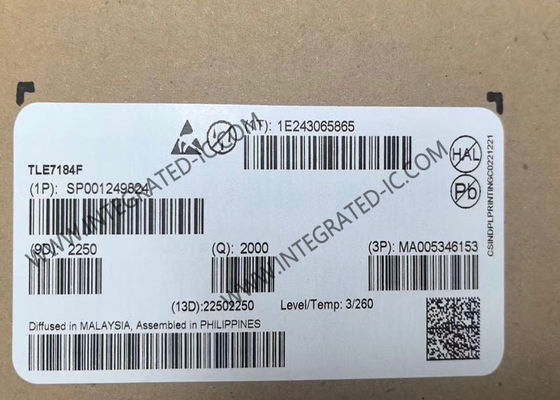

MOTIX™ TLE7184F is a system IC with 3-phase driver and an integrated 5V Vreg-controller to power a MCU.
The MOTIX™ TLE7184F is a system IC for Brushless Motor Control. It incorporates a voltage supply for a µC, a bridge driver for a B6 configuration, and an application typical PWM interface. Its exposed pad package allows usage even at high ambient temperatures.
| Motor Type | AC, DC | Brushless DC (BLDC), Brushed DC |
|---|---|
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Interface | PWM |
| Technology | Power MOSFET |
| Voltage - Supply | 6V ~ 45V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-72 |
| Part Number | Package |
|---|---|
| 2EDB8259Y | 14-SOIC |
| 2EDB8259F | 16-SOIC |
| 2EDB7259Y | 14-SOIC |
| 2EDB7259K | 13-LGA |
| 2EDB8259K | 13-LGA |
| 2ED2748S01G | VSON-10 |
| 2ED2742S01G | VSON-10 |
| 2ED2732S01G | VSON-10 |
| 2ED2738S01G | VSON-10 |
| 2ED2734S01G | VSON-10 |
| 2ED2744S01G | VSON-10 |
| ISC035N10NM5LF | 8-PowerTDFN |
| ISC015N06NM5LF | 8-PowerTDFN |
| ISZ113N10NM5LF | 8-PowerTDFN |
| ISC025N08NM5LF | 8-PowerTDFN |
| IAUCN04S7N005 | PG-TDSON-8 |
| IAUCN04S7N004 | PG-TDSON-8 |
| CYPD717140LQXQ | 40-UFQFN |
| IGLR60R260D1 | PG-TSON-8 |
| PAC22140 | QFN-60 |
| MAX14819AATM | 48-WFQFN |
| MAX14827AAWA | 25-WFBGA |
| MAX22515AWP | 20-WFBGA |
| MAX22513ATI | 28-WFQFN |
| ADPD4000BCBZR7 | 35-UFBGA |
| MAX14821ETG | 24-WFQFN |
| ADA4558WHCPZ | 20-WFQFN |
| MAX22520GWP | 20-WFBGA |
| MAX14832EWL | 9-WFBGA |
| MAX25205EQP/VY | QFN-20 |
