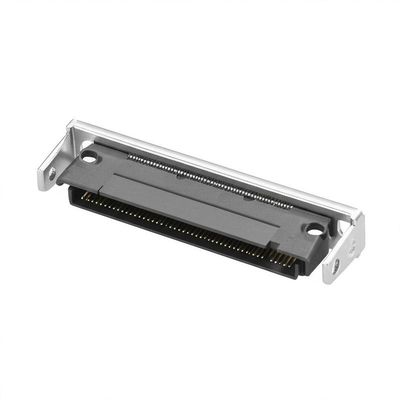

تفاصيل المنتج:
|
| رقم الجزء: | PSAS5M2130121TR | التصنيف الحالي: | 1.5A |
|---|---|---|---|
| نطاق درجة حرارة التشغيل: | -55 درجة مئوية إلى + 105 درجة مئوية | المقاومة (العزل): | 1000 ميجا أوم |
| تصنيف الجهد: | 30V | معدل البيانات: | 32 جيجابت / ثانية |
| إبراز: | 68POS PCIe/SAS Connector,32Gb/s Data Rate PCIe/SAS Connector,1.5A Current Rating PCIe/SAS Connector,32Gb/s Data Rate PCIe/SAS Connector,1.5A Current Rating PCIe/SAS Connector |
||
| Specification | Value |
|---|---|
| Contacts | 68 |
| Rows | 2 |
| Color - Housing | Black |
| Connector Type | Dual Row |
| Current Rating | 1.5A |
| Current Rating (Power) | 1.5A/Contact |
| Current Rating (Signal) | 0.5A/Contact |
| Data Rate | 32Gb/s |
| Dielectric Withstanding Voltage | 500V AC rms |
| Differential Impedance | 85Ω |
| Durability (Mating cycles) | 500 |
| Gender | Header |
| Hold Down | SMT Holdown |
| Locating Pegs | Plastic peg |
| Material Contact | Copper Alloy |
| Material Housing | High Temperature Black Thermoplastic |
| Number of Channels | 6 |
| Number of Signal Pairs | 8 or 12 |
| Operating Temperature Range | -55°C to +105°C |
| Orientation | Right Angle |

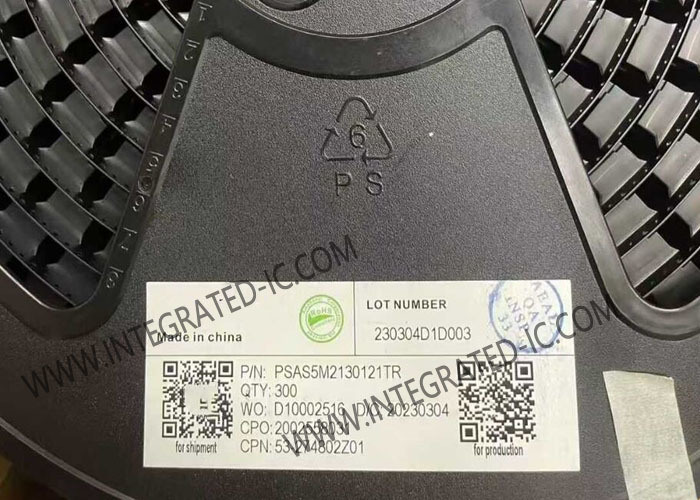

| Packaging | Tape and Reel |
| PCB Thickness | 0.80mm (0.031in) |
| Pitch | 0.80mm (0.031in)|1.27mm (0.050in) |
| Plating Contact area | 0.76μm (30μin) Gold |
| Ports | 1 |
| Product Compliance/Standards | SFF 8639 |
| Product Series | PSAS |
| Resistance (Contact) | 30mΩ |
| Resistance (Insulation) | 1000MΩ |
| Retention Feature | Fork Lock/Harpoon |
| Tail Plating | Matte Tin |
| Termination Style | Surface Mount |
| UL file number | E232356 |
| Vacuum Pick-up Cap | Yes |
| Voltage Rating | 30V |
| Part Number | Package |
|---|---|
| LIFCL-17-8MG121I | 121-CSFBGA |
| LIFCL-17-9SG72I | 72-QFN |
| LIFCL-17-8SG72I | 72-QFN |
| LIFCL-17-7SG72I | 72-QFN |
| LIFCL-40-9SG72C | 72-QFN |
| LIFCL-40-8MG121C | 121-CSFBGA |
| LIFCL-40-8MG289C | 289-CSBGA |
| LIFCL-17-7UWG72C | 72-WLCSP |
| LAV-AT-X30-3LFG676I | 676-FCBGA |
| LAV-AT-X30-2LFG676I | 676-FCBGA |
| LAV-AT-X30-1LFG676I | 676-FCBGA |
| LAV-AT-X30-3LBG484I | 484-FCBGA |
| LAV-AT-X30-2LBG484I | 484-FCBGA |
| LAV-AT-X30-1LBG484I | 484-FCBGA |
| LAV-AT-X30-3ASG410I | 410-WLCSP |
| LAV-AT-X30-2ASG410I | 410-WLCSP |
| LAV-AT-X30-1ASG410I | 410-WLCSP |
| LAV-AT-G30-3LFG676I | 676-FCBGA |
| LAV-AT-G30-2LFG676I | 676-FCBGA |
| LAV-AT-G30-1LFG676I | 676-FCBGA |
| LAV-AT-G30-3LBG484I | 484-FCBGA |
| LAV-AT-G30-2LBG484I | 484-FCBGA |
| LAV-AT-G30-1LBG484I | 484-FCBGA |
| LAV-AT-G30-3ASG410I | 410-WLCSP |
| LAV-AT-G30-2ASG410I | 410-WLCSP |
| LAV-AT-G30-1ASG410I | 410-WLCSP |
| LAV-AT-E30-3CBG484I | 484-FCCSP |
| LAV-AT-E30-2CBG484I | 484-FCCSP |
| LAV-AT-E30-1CBG484I | 484-FCCSP |
| LAV-AT-E30-3ASG410I | 410-WLCSP |
