IPA60R650CE Integrated Circuit Chip 600V CoolMOS™ CE Power Transistor

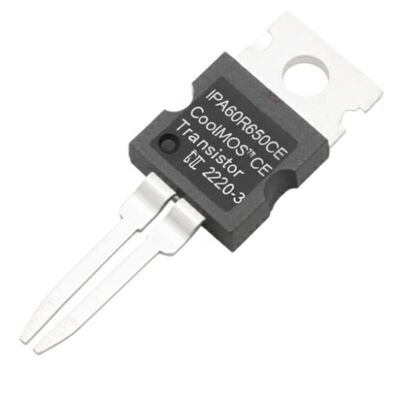

IPA60R650CE is a 600V, 7A, CoolMOS™ CE N-Channel Power MOSFET Transistor in PG-TO220-FP package.
Technical Specifications
| Parameter |
Value |
| FET Type |
N-Channel |
| Technology |
MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) |
600 V |
| Current - Continuous Drain (Id) @ 25°C |
7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) |
10V |
| Rds On (Max) @ Id, Vgs |
650mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id |
3.5V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs |
20.5 nC @ 10 V |
| Vgs (Max) |
±20V |
| Input Capacitance (Ciss) (Max) @ Vds |
440 pF @ 100 V |
| Power Dissipation (Max) |
28W (Tc) |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Mounting Type |
Through Hole |
| Supplier Device Package |
PG-TO220-FP |
| Package / Case |
TO-220-3 Full Pack |
Key Features
- Extremely low losses due to very low FOM Rdson Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for standard grade applications
Applications
PFC stages, hard switching PWM stages and resonant switching stages for applications including PC Silverbox, Adapter, LCD & PDP TV and indoor lighting.
