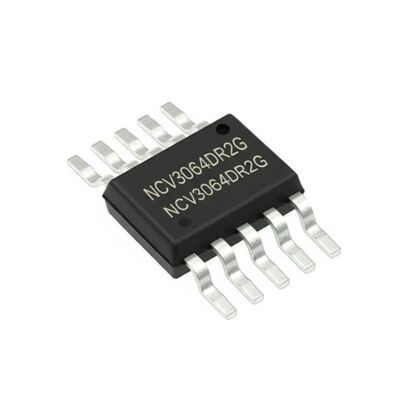

NCV3064DR2G Integrated Circuit Chip 1.5A Buck Boost Switching Regulator With On/Off Function
The NCV3064DR2G Buck Boost Inverting Switching Regulator is a higher frequency upgrade to the popular MC33063A and MC34063A monolithic DC-DC hysteretic converters. This integrated circuit features an internal temperature compensated reference, comparator, controlled duty cycle oscillator with active current limit circuit, driver, and high current output switch. Designed for step-down (buck), step-up (boost), and voltage-inverting applications with minimal external components, it includes an ON/OFF function that puts the device into a low power (<100μA) standby state.
Specifications
| Function |
Step-Up, Step-Down |
| Output Configuration |
Positive or Negative |
| Topology |
Buck, Boost |
| Output Type |
Adjustable |
| Number of Outputs |
1 |
| Voltage - Input (Min) |
3V |
| Voltage - Input (Max) |
40V |
| Voltage - Output (Min/Fixed) |
1.25V |
| Voltage - Output (Max) |
40V |
| Current - Output |
1.5A (Switch) |
| Frequency - Switching |
150kHz |
| Synchronous Rectifier |
No |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
Key Features
- Operation up to 40V Input
- Frequency operation up to 150kHz (250kHz if used as a controller)
- Internal thermal shutdown with hysteresis
- Cycle-by-cycle current limiting
- Low power standby mode (<100μA)
Applications
- NCV3064 available for automotive applications
- Cigarette Lighter Adapter (CLA)
