تفاصيل المنتج:
|

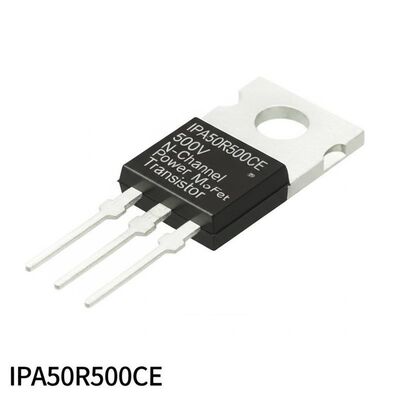

| رقم الجزء: | IPA50R500CE | قطبية الترانزستور:: | قناة ن |
|---|---|---|---|
| Vds - جهد انهيار مصدر الصرف:: | 500 v | المعرف - تيار التصريف المستمر:: | 11.1 أ |
| Rds On - مقاومة مصدر الصرف:: | 1.17 أوم | Vgs - جهد مصدر البوابة:: | - 20 فولت ، 20 فولت |
| إبراز: | 500V Drain-Source Voltage Power MOSFET,N-Channel Power MOSFET,CoolMOS™ Technology Transistor,N-Channel Power MOSFET,CoolMOS™ Technology Transistor |
||
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 13V |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 2.3A, 13V |
| Vgs(th) (Max) @ Id | 3.5V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 18.7 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 433 pF @ 100 V |
| Power Dissipation (Max) | 28W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Part Number | Package |
|---|---|
| ISO7763FQDWQ1 | 16-SOIC |
| ISO7821FDWWR | 16-SOIC |
| ISO7810FDWWR | 16-SOIC |
| ISO7142CCQDBQQ1 | 16-SSOP |
| ISO7331FCQDWQ1 | 16-SOIC |
| ISO7340FCQDWQ1 | 16-SOIC |
| ISO7721FQDWRQ1 | 16-SOIC |
| ISO7820DWWR | 16-SOIC |
| ISO7841DWWR | 16-SOIC |
| ISO7321FCQDQ1 | 8-SOIC |
| ISO6721RFBQDRQ1 | 8-SOIC |
| OPA814DR | 8-SOIC |
| INA310B4QDGKRQ1 | 8-TSSOP |
| INA310A2QDGKRQ1 | 8-TSSOP |
| INA310A1QDGKRQ1 | 8-TSSOP |
| INA310A5QDGKRQ1 | 8-TSSOP |
| INA310B2QDGKRQ1 | 8-TSSOP |
| INA310A3QDGKRQ1 | 8-TSSOP |
| INA296A2QDDFRQ1 | SOT-23-8 |
| INA241A2IDDFR | SOT-23-8 |
| INA186A1QDDFRQ1 | SOT-23-8 |
| INA190A2QDDFRQ1 | SOT-23-8 |
| INA296A2IDDFR | SOT-23-8 |
| INA241B3IDDFR | SOT-23-8 |
| INA241A5IDDFR | SOT-23-8 |
| INA190A4IDCKR | 6-TSSOP |
| INA293A4QDBVRQ1 | SOT-23-5 |
| INA281B2QDBVRQ1 | SOT-23-5 |
| INA281A5QDBVRQ1 | SOT-23-5 |
| INA293B2QDBVRQ1 | SOT-23-5 |
