Product Description Of ESP32-C5-MINI-1U-N4

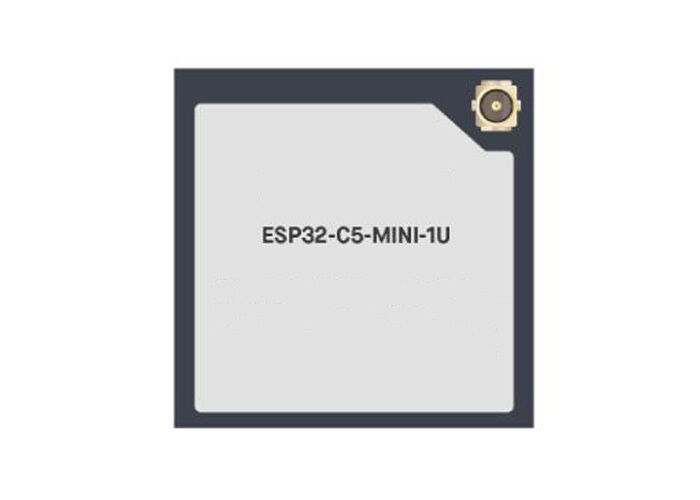

ESP32-C5-MINI-1U-N4 is a powerful, general-purpose Wi-Fi microcontroller equipped with a wide range of peripherals. The ESP32-C5-MINI-1U-N4 features an IPEX (U.FL) antenna interface and requires an external antenna, making it suitable for scenarios with specific requirements regarding signal range, penetration or installation location.

Specification Of ESP32-C5-MINI-1U-N4

Product Series: ESP32-C5-MINI Series
Core Chip: ESP32-C5 (RISC-V 32-bit single-core, 240 MHz)
Memory Configuration: 4 MB Flash (N4), no PSRAM
ROM: 320 KB
HP SRAM: 384 KB
LP SRAM: 16 KB
SPI Flash: 4 MB
Operating Voltage/Power Supply: 3.0 ~ 3.6 V
Operating Temperature Range: –40 ~ 85 °C
Physical Characteristics
Dimensions: 15.4 × 21.3 × 2.4 mm
Antenna:
-N4: Integrated PCB antenna
-1U-N4: IPEX (U.FL) external antenna interface
Operating Voltage: 3.0 V to 3.6 V
Operating Temperature: –40 °C to +85 °C
Moisture Sensitivity Level (MSL): 3
Peripheral Interfaces:
GPIO: 29 programmable general-purpose I/O pins
Communication Interfaces:
3 × UART (including 1 low-power UART)
2 × I2C (including 1 low-power I2C)
1 × SPI / 1 × I2S
Analogue Interfaces: 7-channel 12-bit SAR ADC
Other: 6-channel LED PWM controller, timers, RTC, DMA

Features Of ESP32-C5-MINI-1U-N4

Triple-protocol support: Simultaneously supports Wi-Fi 6 (2.4G/5G), BLE 5.2, and Zigbee/Thread, enabling a multi-protocol gateway on a single chip.
Dual-band Wi-Fi 6: The 5GHz band offers higher bandwidth, lower latency and less interference; Wi-Fi 6 TWT technology significantly extends battery life.
Ultra-compact: Ultra-small dimensions of 15.4 × 21.3 mm, suitable for compact devices such as smartwatches, earphones and small sensors.
High-efficiency RISC-V core: 240 MHz high-performance processor with 384 KB SRAM, capable of handling complex computations and multitasking.
Industrial-grade reliability: Wide operating temperature range from -40°C to 85°C and high stability, suitable for industrial and outdoor equipment.

Applications Of ESP32-C5-MINI-1U-N4

Smart Home: Smart switches, temperature and humidity sensors, smart light bulbs, gateway devices.
Wearables: Smartwatches, health monitoring wristbands, wireless earphones.
Industrial IoT: Low-power sensor nodes, industrial wireless bridging, equipment monitoring.
Consumer Electronics: Remote controls, wireless audio devices, portable smart devices.
Commercial Displays: Small electronic labels, LED screen control, low-power digital signage.
