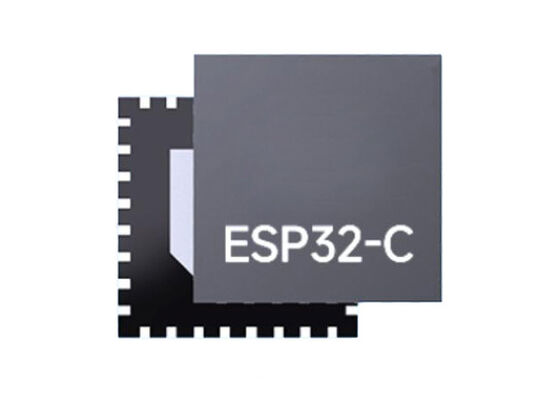

ESP32-C61HR8 Integrated Circuit Chip 2.4GHz Wi-Fi 6 And BT Low Energy System On Chip

ESP32-C61HR8 Integrated Circuit Chip 2.4GHz Wi-Fi 6 And BT Low Energy System On Chip​

Product Description Of ESP32-C61HR8

ESP32-C61HR8 is a low-power MCU System-on-Chip (SoC) supporting 2.4 GHz Wi-Fi 6 and Bluetooth® 5 Low Energy (LE), and integrates a RISC-V 32-bit single-core processor, Wi-Fi baseband, Bluetooth baseband, RF module, and peripherals.

Specification Of ESP32-C61HR8

Features Of ESP32-C61HR8

Wi-Fi
Operating in the 2.4 GHz band, 1T1R
Operating channel centre frequency range: 2412 ~ 2484 MHz
Compatible with IEEE 802.11ax protocol
Bluetooth
Bluetooth Low Energy (BLE): Bluetooth Core 6.0 certified
Bluetooth mesh 1.1
High power mode (20 dBm transmit power)
Bluetooth direction finding (AoA/AoD) based on arrival and departure angles
Periodic Advertising with Reply (PAwR)
Rate support for 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
CPU and Memory
32-bit single-core RISC-V processor
Clock speed: up to 160 MHz
CoreMark® score at 160 MHz: 553.78 CoreMarks; 3.46 CoreMarks/MHz (O3)
Five-stage pipeline architecture
L1 cache (32 KB)
ROM: 256 KB
SRAM: 320 KB
SPI protocol support: SPI, Dual SPI, Quad SPI, QPI, for external flash, off-chip RAM and other SPI devices
Flash/External RAM controller with cache mechanism • Supports in-system programming of flash
RF Module
Antenna switch, RF balun, power amplifier, low-noise amplifier
802.11ax transmit power up to +19.5 dBm
802.11b transmit power up to +21 dBm
Bluetooth Low Energy receiver sensitivity (125 Kbps) down to –106 dBm

Applications Of ESP32-C61HR8

The ESP32-C61HR8 low-power chip is designed for Internet of Things (IoT) devices, with application areas including:
Smart home
Industrial automation
Healthcare
Consumer electronics
Smart agriculture
POS terminals
Service robots
Audio equipment
General-purpose low-power IoT sensor hubs
General-purpose low-power IoT data logger
