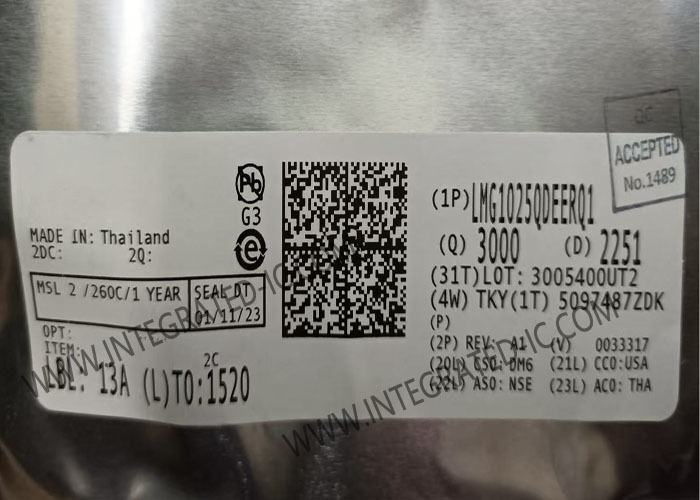

LMG1025QDEERQ1 Integrated Circuit Chip Automotive Low Side GaN And MOSFET Driver WSON-6

LMG1025QDEERQ1 is a single channel low-side enhancement-mode GaN FET and logic-level MOSFET driver for high switching frequency automotive applications. Narrow pulse width capability, fast switching specification, and small pulse distortion combine to significantly enhance LiDAR, ToF, and Power Converter performance.

1.25ns output pulse width enables more powerful, eye-safe diode pulses. This, combined with 300ns distortion, leads to longer-range, precise LiDAR/ToF systems. 2.9ns propagation delay significantly improves the control loop response time and thus overall performance of the power converters. Split output allows the drive strength and timing to be independently adjusted through external resistors between OUTH, OUTL, and the FET gate.

• 1.25ns typical minimum input pulse width
• 2.6ns typical rising propagation delay
• 2.9ns typical falling propagation delay
• 300ps typical pulse distortion
• Independent 7A pull-up and 5A pull-down current
• 650ps typical rise time (220pF load)
• 850ps typical fall time (220pF load)
• 2mm x 2mm QFN package
• Inverting and non-inverting inputs
• UVLO and over-temperature protection
• Single 5V supply voltage

• Automotive LIDAR
• Driver monitoring
• Vehicle occupant detection sensor
• DC/DC converter

A: Yes, all products are original, new original import is our purpose.

A: We are ISO 9001:2015 Certified Company and member of ERAI.

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
