تفاصيل المنتج:
|
| رقم الجزء: | BTS3134N | الجهد - الحمل: | 42 فولت (كحد أقصى) |
|---|---|---|---|
| الحالي - الإخراج (الحد الأقصى): | 3 أ | طرق على (الطباع): | 35 مللي أوم |
| لقط الطاقة: | 500 مللي جول | درجة حرارة التشغيل: | -40 درجة مئوية ~ 150 درجة مئوية (TJ) |

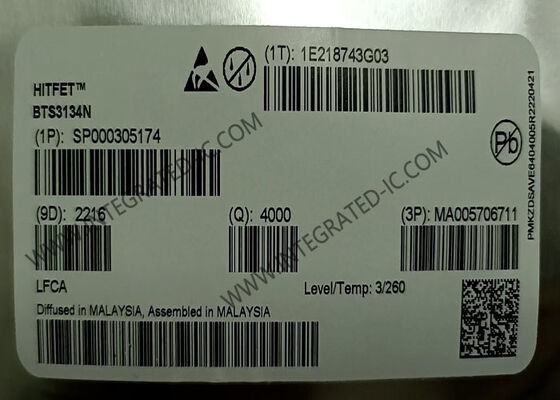

BTS3134N Integrated Circuit Chip 42V Automotive Smart Low Side Power Switch PG-SOT223-4
BTS3134N is a single-channel N-channel smart low-side power switch from the HITFET® series. It integrates a SIPMOS® power FET with a complete protection circuit and is specifically designed for 12V automotive and industrial systems. It can be driven directly by an MCU GPIO, replacing traditional discrete MOSFETs and relays, and offers comprehensive protection against overcurrent, short-circuit, overtemperature, overvoltage and ESD.
| Parameter | Value |
|---|---|
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 42V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 35mOhm |
| Input Type | Non-Inverting |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
