تفاصيل المنتج:
|
| رقم الجزء: | BSC030N08NS5 | استنزاف لمصدر الجهد (Vdss): | 80 فولت |
|---|---|---|---|
| التيار - التصريف المستمر (المعرف) عند 25 درجة مئوية: | 100 أمبير (ح) | جهد القيادة (الحد الأقصى للطرق، الحد الأدنى للطرق): | 6 فولت، 10 فولت |
| Rds On (الحد الأقصى) @ Id، Vgs: | 3 مللي أوم @ 50 أمبير ، 10 فولت | Vgs (th) (Max) @ Id: | 3.8 فولت عند 95 ميكرو أمبير |

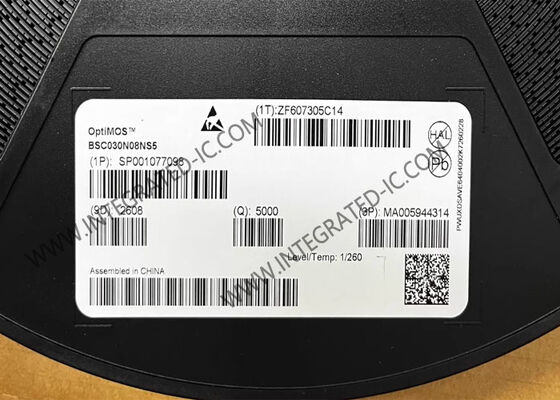

BSC030N08NS5 OptiMOS™ 5 80V power MOSFET, especially designed for Synchronous Rectification for telecom and server power supplies. In addition, the device can also be utilized in other industrial applications such as solar, low voltage drives and adapters. Within seven different packages, the OptiMOS™ 5 80V MOSFETs offer the industry's lowest RDS(on). Additionally, compared to the previous generation, OptiMOS™ 5 80V has an RDS(on) reduction of up to 43%.
| Transistor Polarity | N-Channel |
| Number of Channels | 1 Channel |
| VDS - Drain-Source Breakdown Voltage | 80 V |
| ID - Continuous Drain Current | 100 A |
| RDS(on) - Drain-Source Resistance | 4.5 mΩ |
| VGS - Gate-Source Voltage | -20 V, 20 V |
| VGS(th) - Gate-Source Threshold Voltage | 2.2 V |
| Qg - Gate Charge | 61 nC |
| Operating Temperature Range | -55°C to +150°C |
| PD - Power Dissipation | 139 W |
| Channel Mode | Enhancement |
| Configuration | Single |
| Fall Time | 13 ns |
| Forward Transconductance - Min | 55 S |
| Product Type | MOSFETs |
| Rise Time | 12 ns |
| Typical Turn-Off Delay Time | 43 ns |
| Typical Turn-On Delay Time | 20 ns |
| Unit Weight | 506.600 mg |
| Part Number | Package |
|---|---|
| AMC6821SQDBQRQ1 | 16-SSOP |
| MSP430FR2676TRHAR | 40-VQFN |
| TPS16416DRCR | 10-VFDFN |
| TPS16414DRCR | 10-VFDFN |
| TPS16417DRCR | 10-VFDFN |
| TPS259813LRPWR | VQFN-10 |
| TPS25972ARPWR | 10-VFQFN |
| TPS25961DRVR | 6-WDFN |
| TPS25970LRPWR | 10-VFQFN |
| TPS259802ONRGER | 24-VFQFN |
| TPS259803ONRGER | 24-VFQFN |
| TPS26622DRCR | 10-VFDFN |
| TPS26625DRCR | 10-VFDFN |
| TPS26400RHFR | 24-VFQFN |
| TPS259474LRPWR | 10-VFQFN |
| TPS259461ARPWR | 10-VFQFN |
| TPS25974ARPWR | 10-VFQFN |
| TPS259474ARPWR | 10-VFQFN |
| TPS16530PWPR | 20-HTSSOP |
| TPS259807ONRGER | 24-VQFN |
| TPS259472LRPWR | 10-VFQFN |
| TPS26632RGER | 24-VFQFN |
| TPS259822LNRGER | 24-VFQFN |
| TPS259822ONRGER | 24-VFQFN |
| TPS259824ONRGER | 24-VFQFN |
| TPS259827ONRGER | 24-VFQFN |
| TPS259827LNRGER | 24-VFQFN |
| TPS259520DSGR | 8-WFDFN |
| TPS259531DSGR | 8-WFDFN |
| TPS259630DDAR | 8-PowerSOIC |
