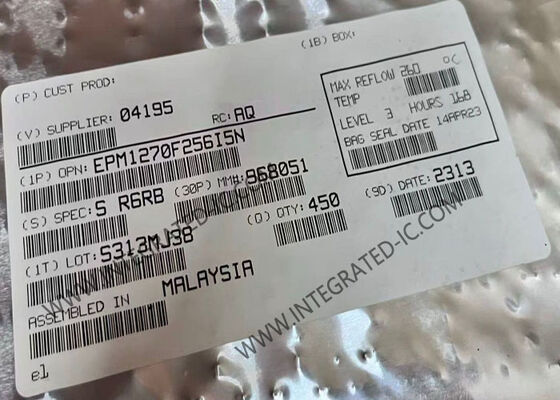

EPM1270F256I5N Low-Power MAX II CPLD with 1270 Logic Elements and 212 I/O Field Programmable Gate Array

EPM1270F256I5N MAX® II instant-on, non-volatile CPLDs are based on a 0.18-µm, 6-layer-metal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. These devices offer high I/O counts, fast performance, and reliable fitting versus other CPLD architectures. Featuring MultiVolt core, a user flash memory (UFM) block, and enhanced in-system programmability (ISP), EPM1270F256I5N MAX II devices are designed to reduce cost and power while providing programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR) and sequencing control, and device configuration control.

• Low-cost, low-power CPLD
• Instant-on, non-volatile architecture
• Standby current as low as 25 µA
• Provides fast propagation delay and clock-to-output times
• Provides four global clocks with two clocks available per logic array block (LAB)
• UFM block up to 8 Kbits for non-volatile storage
• MultiVolt core enabling external supply voltages to the device of either 3.3 V/2.5 V or 1.8 V
• MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic levels
• Bus-friendly architecture including programmable slew rate, drive strength, bus-hold, and programmable pull-up resistors
• Schmitt triggers enabling noise tolerant inputs (programmable per pin)
• I/Os are fully compliant with the Peripheral Component Interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for 3.3-V operation at 66 MHz
• Supports hot-socketing
• Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990
• ISP circuitry compliant with IEEE Std. 1532

• Video processing: Capable of high-speed video data processing, making it suitable for applications such as video capture and image processing.
• Communications: Supports a variety of communication protocols and interfaces, making it suitable for applications in areas such as network communications and wireless communications.
• Industrial control: Featuring high performance and low power consumption, it is suitable for applications requiring long-term operation, such as industrial control.
